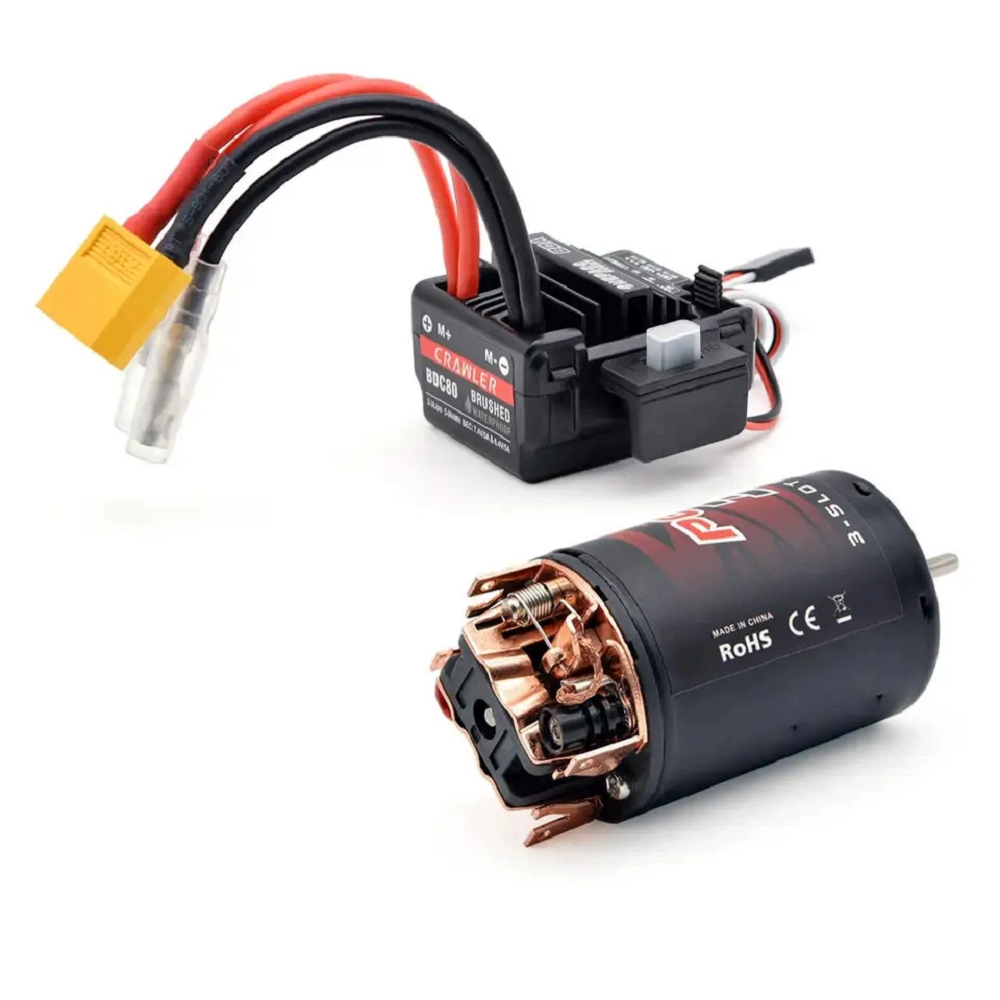

SURPASS HOBBY 50 Brushed Motor 3 Slot and 80A Brushed ESC Combo 12T 14T 20T 25T for RC Crawler Car

SURPASS HOBBY 50 Brushed Motor 3 Slot and 80A Brushed ESC Combo 12T 14T 20T 25T for RC Crawler Car

ESC Features:
1. Buit-in BEC: 6.0V/7.4V/8.4V 5A three-speed BEC output switching to meet different steering gear needs.
2. Four running modes available: Forward rotationwith brakes;Forward andreverse rotations with brakes;Forward and reverse rotation;Real car running mode.
3. Case upgrade:Reduces operating temperatureby about 13°C compared to the old 80A Pro,thus improving reliability improved cooling and performance.
4. Provide up to 13 programming settings.
5. Suit for 540/550 three-slot/five-slot carbon brush and brushed motor.

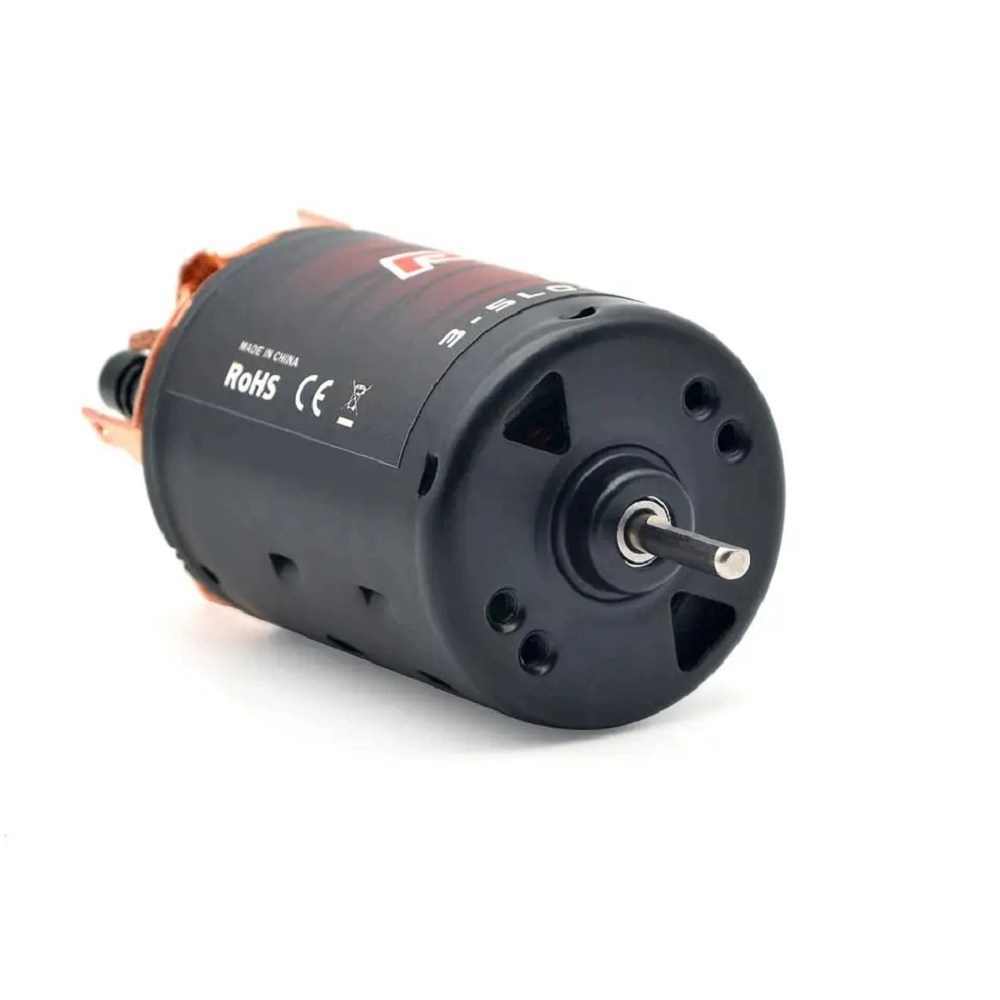

Motor Features:
1. High Purity Copper Windings.
2. Double ball bearing, speed balanced and low noise.
3. Replaceable high quality low resistance，carbon brush from.
4. Remowable / replaceable structure, easy to clean and maintain.
5. Precision engineered for maximum energy conversion.

Motor Specifications:
550-12T
Turns:12T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<2.4A
No-load RPM:26000±12%RPM
Plugging current:18.9-82.4A
Torsion:≥2301.4g.cm

550-14T
Turns:14T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<2.2A
No-load RPM:23000±12%RPM
Plugging current:13.7-76.4A
Torsion:≥2670.0g.cm

550-20T
Turns:20T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.7A
No-load RPM:16000±12%RPM
Plugging current:10.9-62.1A
Torsion:≥2537.6g.cm

550-25T
Turns:25T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.3A
No-load RPM:13000±12%RPM
Plugging current:10.3-51.9A
Torsion:≥2190.4g.cm

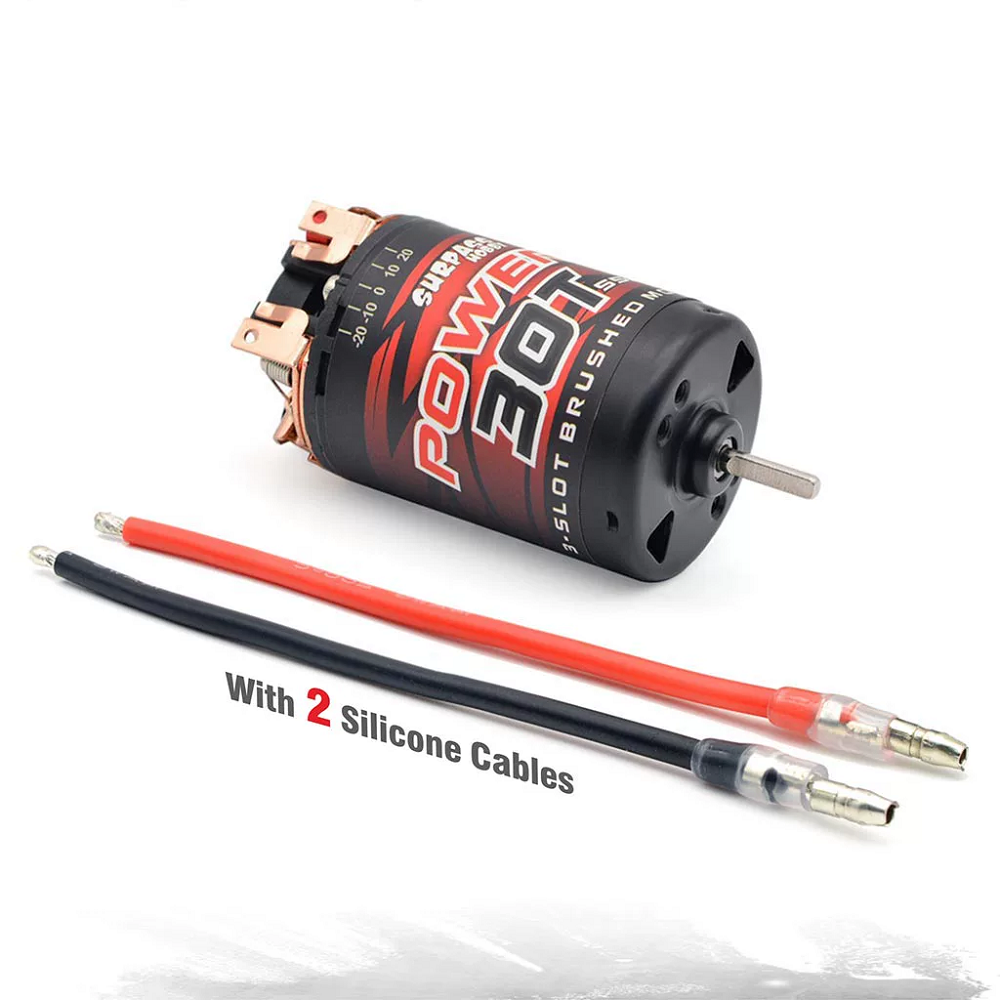

550-30T
Turns:30T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<1.1A
No-load RPM:11000±12%RPM
Plugging current:9.7-37.6A
Torsion:≥2100.2g.cm

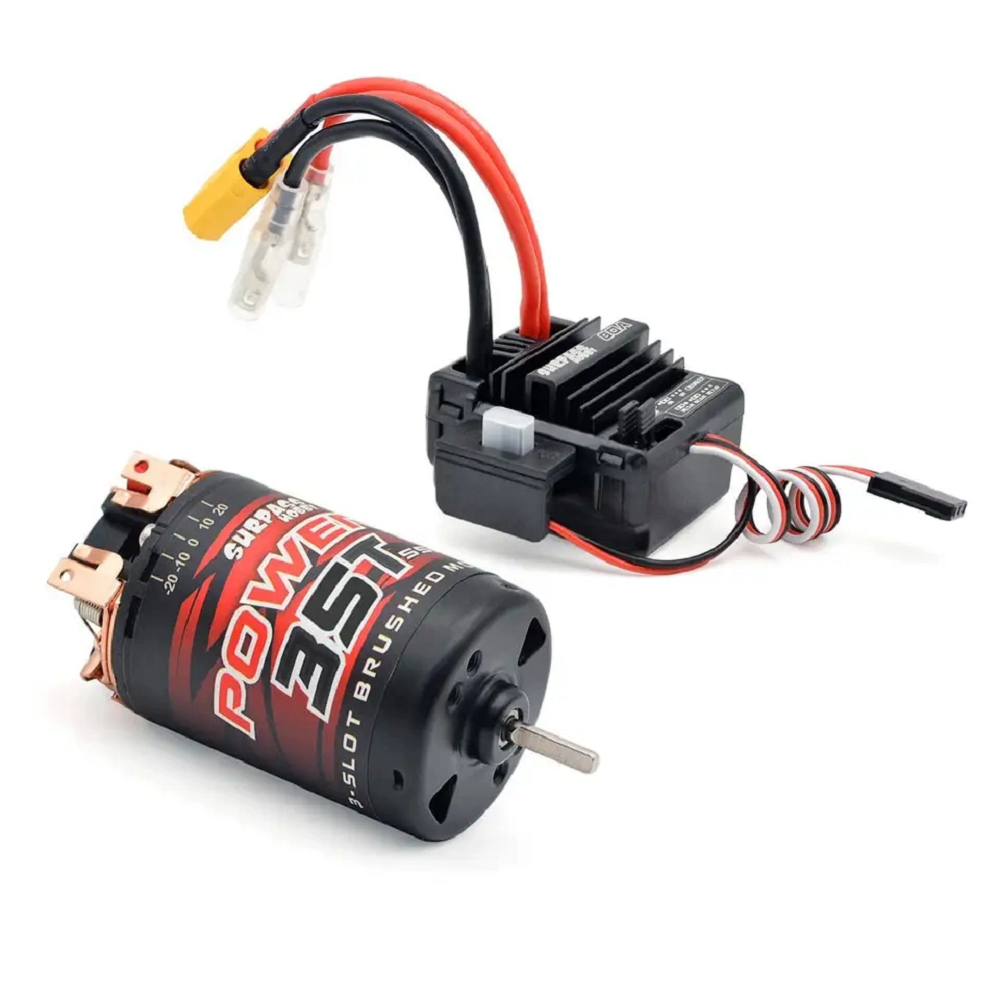

550-35T
Turns:35T
Voltage(Lipo):7.4V
Turn:CCW
Weight(g):211
Shaft(mm):Φ3.175
No-load current:<0.85A
No-load RPM:9500±12%RPM
Plugging current:6.9-29.5A
Torsion:≥2000.1g.cm

Package contents:
1*550 Motor+1*80A ESC Combo
