Description:

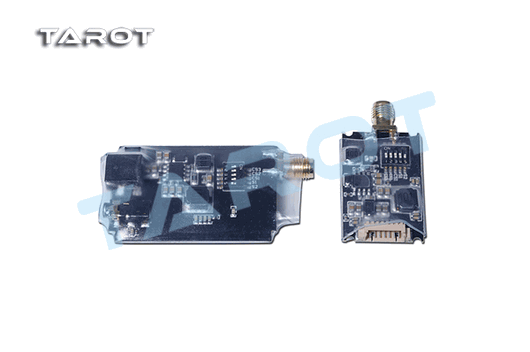

The Tarot 5.8G 600mw video TX/RX combo has 32 channels. The FPV combo has super mini size and super light weight. It is quite suitable for the small size mutlicotper. 32 channels is compatible with the regular frequency. It provides one line for video signal, two line for audio signal for long distance transmission. Besides, it provides 5V 1 amp output (this could power the camera, image overlay and etc which requires 5V power). The weight of the TX is only 8.3g (without antenna).

Specifications of the TX:

1. Weight: 8.3G (without antenna)
2. Dimension: 21 x 33 x 7.5 mm
3. Working Frequency: 5645-5945MHz
4. Channel: 4 bands / 32 channel
5. Channel Choice: 5-DIP switch
6. Output Power: 27.5 dbm (600mw)
7. Input Voltage: DC 7-26V (2-6S)
8. Output Voltage: 5V 1A
9. Antenna Adaptor: SMA 50£[
10. Working Temperature: -10 ~ 60 degrees
11. Frequency: FM

Specifications of RX:

1. Weight: 10.9 G (without antenna)
2. Dimension: 28 x 46 x 40 mm
3. Working frequency: 5645-5945 MHZ
4. Channel: 4 bands / 32 channels
5. Channel Choice: 5-DIP switch
6. Receiving Sensitivity: -85 dbm
7. Input Voltage: DC 7-26V (2-6S)
8. Antenna Adaptor: SMA 50£[
9. Working Temperature: -10 ~ 60 degrees
10. Frequency: FM/PLL
11. AV output: 2.5mm 4 pins AV output
12. Power input: 3.5mm (exterior) 1.3 mm (interior) DC

Note:
1ĦBInstall the antenna before connecting the power to avoid further damage.
2ĦBChoose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
3ĦBDo not touch the surface of transmitter while operating. It is normal the surface is getting hot.
4ĦBThe input voltage range is between 7-26V (2-6S), do not overload the working voltage.
5ĦBThe output voltage is 5V1A. Please confirm the current and voltage of the camera

Package Includes:
1 x TX5832-600M Audio Video Transmitter
1 x RX5832 AV Receiver
1 x 7P Color Pin
1 x 3.5MM Power Supply Cable
1 x 2.5MM AV Cable
1 x Manual
