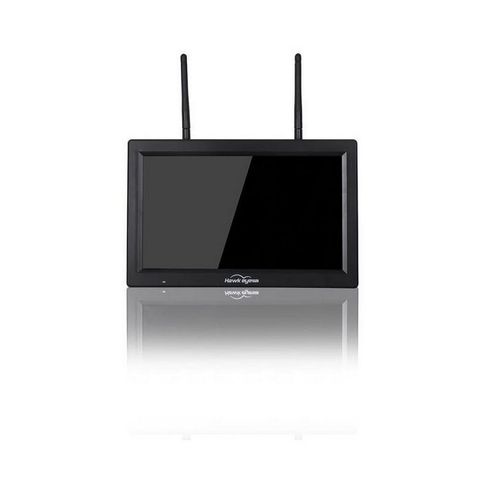

REVIEWSThe Hawkeye Little Pilot Captain Monitor comes with 10.2inch high bright screen and dual receivers and DVR.It supports 3-6S battery.The antenna is SMA conenctor and PAL/NTSC can be switchable.
Specification:
|
LED Screen |
Display resolution |
1280×720 |
|
|
Backlight |
LED |
|
|
Brightness |
1000 Lux |
|
|
Aspect ratio |
16：9 |
|
|
Response time |
10ms |
|
|
Color system |
PAL/NTSC |
|
Power Supply |
Working voltage |
DC：3S-6S battery |
|
|
Current |
1.74A @3S；850MA @6S; |
|
Input |
Signal |
Video（PAL/NTSC），HDMI |
|
Output
|
Signal |
Video |
|
|
5V(input power >12V) |
1A |
|
DVR |
Resolution |
D1/VGA/QVGA |
|
|
TF card supported |
Max 64G |
|
Specification
|
Packing size |
300mm×200mm×60mm |
|
|
Monitor size |
265mm×170mm×31mm |
|
|
Gross weight |
1.13kg |
|
|
5.8G Sensitivity |
-93dB |
|
Matching antenna interface |
interface |
SMA |
Features:
Specially designed for aerial photography system, CAPTAIN all-in-one monitor
High brightness: 1000 Lux.
Dual receiver: built-in dual receivers.
DVR : integrated DVR black box can run in the background for recording.
IPS:1280x720
Pacakge Includes:
1X Hawkeye Little Pilot Captain 5.8GHZ 10.2Inch Monitor
