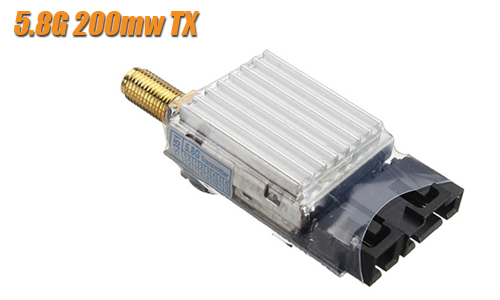

Boscam TS351 5.8Ghz 200mW transmitter. This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 1km+.�

Specification:

• Video Format: Pal/NTSC
• Output impedance: 50Ohm
• Output power: 21~23dBm
• Channels: 8�
• Transmitter operating voltage: 7~15VDC / 150mA
• Video bandwidth: 0~8.0MHz
• Audio frequency: 6.5MHz
• Video input level: 0.8~1.2Vp-p
• Video input impedance: 75Ohm
• Audio input level: 0.5~2.0Vp-p
• Audio input impedance: 10K/Ohm
• Weight: 25g
• Antenna connector: SMA�
• Dimensions: 55x26x17mm

Working frequency:
- CH1:5705 CH2:5685�
- CH3:5665 CH4:5645�
- CH5:5885 CH6:5905�
- CH7:5925 CH8:5945

Includes:
1 x Transmitter
1 x Antenna
1 x Power in harness

* No instruction manual supplied with this product.
* This is a transmitter only, transmitter to be purchased separately.
* Many fake, poor quality & untested FPV products are currently entering the market. Don’t get caught out with poor quality substitutes, Boscam FPV equipment is tried and true and has been tested and developed by FPV pilots for FPV pilots.�
