The ARRIS X220 V2 with AT9S settings file is here in Betaflight.
What is the differences between the ARRIS X220 (CA0128) and the X220 V2(CA0157)?
1. The fight controller is upgrade from F3 to OMNIBUS F4 flight controller.
2. The camera upgrade from ARRIS XAT700M camera to FOXEER ARROW Mini Pro camera.
3. The VTX is upgrade to ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter with better signal and longer range.
4. Add the LED on the tear of the quad.
5. Antenna is upgrading to the Foxeer Pagoda pro mini antenna.

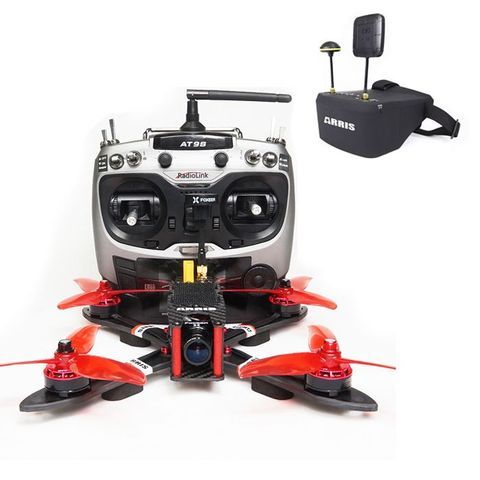

ARRIS X220 220mm FPV racig drone RTF with EV800 FPV goggles is fully assemble and tuned, it is ready to fly. It is one of the best racing quad for freestyling. ARRIS X220 RTF comes with ARRIS X2205 2300kv high quality brushless motor,Flycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F4 + PDB + OSD board,Dalprop T5045C high efficiency propeller,Foxeer ARROW Mini pro fpv camera,5.8G 48CH long range mini video TX,Radiolink AT9S with R6DSM mini receiver and 4S 1500mah 50C lipo battery. Before leaving the factory, the RTF is tuned and tested by the technician. Plug the battery, you can begin your FPV journey!
Diagonal Wheelbase: 220mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon Fiber
Radio System: Radolink AT9S with Receiver
Camera: Foxeer ARROW Mini Pro FPV camera
FPV TX: 5.8G 48CH switchable VTX
Antenna: Foxeer Pagoda Pro antennaa
Flying Time: About 12 minutes (hovering)
Battery: ARRIS 4S 1500mah 50C Lipo
Goggle: EV800 5inch 800 x 480 FPV Goggles
The main feature of the ARRIS X220 is the "X" symmetrical design,light weight,simple structure,durable and agile.The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.
Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 30A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports ?PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.
ARRIS X2206 2450KV brsushless motor is high end brushless motor specially designed for high performance fpv racing drones.It adopts brand new M5 steel shaft, improving the structure strength. It had been upgraded to centrifugal fan design, optimizing the heat dissipation.It also adopts original Japan NSK bearing and N52 tile-shape magnets to ensure the power and quality of the motor.
DALPROP cyclones T5045C series propeller is newly released high end dynamic balanced prop for fpv racing drones.
The propeller is made of imported PC,the strength is high, and the root is thickened,which make the propeller is not easily broken. The smooth surface design on the prop decreased the windage resistance,increasing the efficiency of the propeller.
The Foxeer Arrow ARROW Mini Pro Camera comes with excellent WDR, which works well in the fast change of the dark and bright environment, support 5-35V super wide voltage, and built-in microphone and FPV OSD.The angle of the camera is adjustable on the ARRIS X220.
GoPro and Sports fpv camera can mount on the ARRIS X220, the mounting set is sold separately.You can check here. If you mount the GoPro or FPV camera on it, the XT60 plug for the battery need to install on the bottom plate.
ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter.It has stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna), 6 power switchable,Output power and frequency setting can be done in OSD interface through remote controller and it weighs only 6g, perfect for fpv racing quads.
Below is the video to show how to adjust the vtx through your radio
Foxeer Pagoda Pro 5.8G mini antenna. The body adopts imported PC+ABS material, can withstand high strenghth impact. Double-jacket semi-rigid cable for heavy impact resistance. Lower feeder loss, easy to install, can be bent at any angle and maintain.
Highlight LED on the rear of the drone.
ARRIS X220 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable)according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.
There are three flight mode on the radio: Attitude Mode (Self-level mode), Acro Mode(Manual Mode) and Air Mode.
Radiolink AT9S 10 Channel 2.4GHz Radio
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz and 250Kbps
Spread spectrum: DSSS&FHSS
Adjacent channel rejection: >38dbm
Transmitter power: less than 100mW (20dbm )
Operating current: 90mA@12V
Operating voltage: 7.4~18.0V
Control distance: More than 900 meters ground, 1500 meters air (the actual controldistance depends on the flying environment)
Channel: 10 channels,5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
Size: AT9S- 183 x 100 x 193mm, R9DS- 41 x 23 x 14mm
High safety ARRIS 4S 1500mah Lipo Battery
ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.
EV800D Main Feature:
-With DVR,you can record videos anytime and anywhere;
- Low power consumption;
- Double antenna reception to make the signal more stable;
-Auto-Searching,support a key search frequency;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time for DVR OFF and 2.5 hours for DVR ON;
- Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power source, to prolong the working time;
- Ergonomic design fit your faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the adage of screen;
- Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD screen
-Universal USB charging interference;
-Real-time video return,very low time-delay;
-Support external video signal input;
-Support Audio signal output;
||5.8G EV800D Goggles with DVR
REC sound: ON/OFF
Frame rate:30 frames
Record flie format:AVI
Screen size: 5.0 inch
Screen resolution: 800*480 (No blur after enlarge by the lens)
Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 140/120 degree(Horizontal/Vertical)
92% transparent rate no distort of light;
|Battery and recharge
||Built-in 3.7V/2000mAh battery;
Each battery circle offer around 2.5-3.5hr working time;
5-12V wide recharging voltage range, typical recharging voltage is 5V
Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
USB:To charge the battery
AV jack:External video signal input or internal Audio signal output
Card slot: TF-card,support up to 32G(C10 recommend)
Build in 5.8G 40CH Raceband receiver
|Frequency Band A
|Frequency Band B
|Frequency Band E
|Frequency Band F
|Frequency Band R
Weight: 393g (with headbrand,not include antennas)
1xARRIS X220 FPV Racing Quad Frame
4xARRIS X2206 2450KV V2 Brushless Motors
1xFlycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 30A ESC + F4 + PDB + OSD
4xDalprot T5045C High Effiency Propeller
1xFoxeer ARROW Mini Pro camera
1xARRIS VT5804 48CH VTX
1xFoxeer Pagoda pro mini antenna
1xRadiolink AT9S Transmitter with R6DSM receiver
1xARRIS 4S 1500mah Lipo Battery
1xEV800D 800x480 FPV Goggle
Note: Battery Charger is sold separately.
