Amass  |  SKU: UC0056

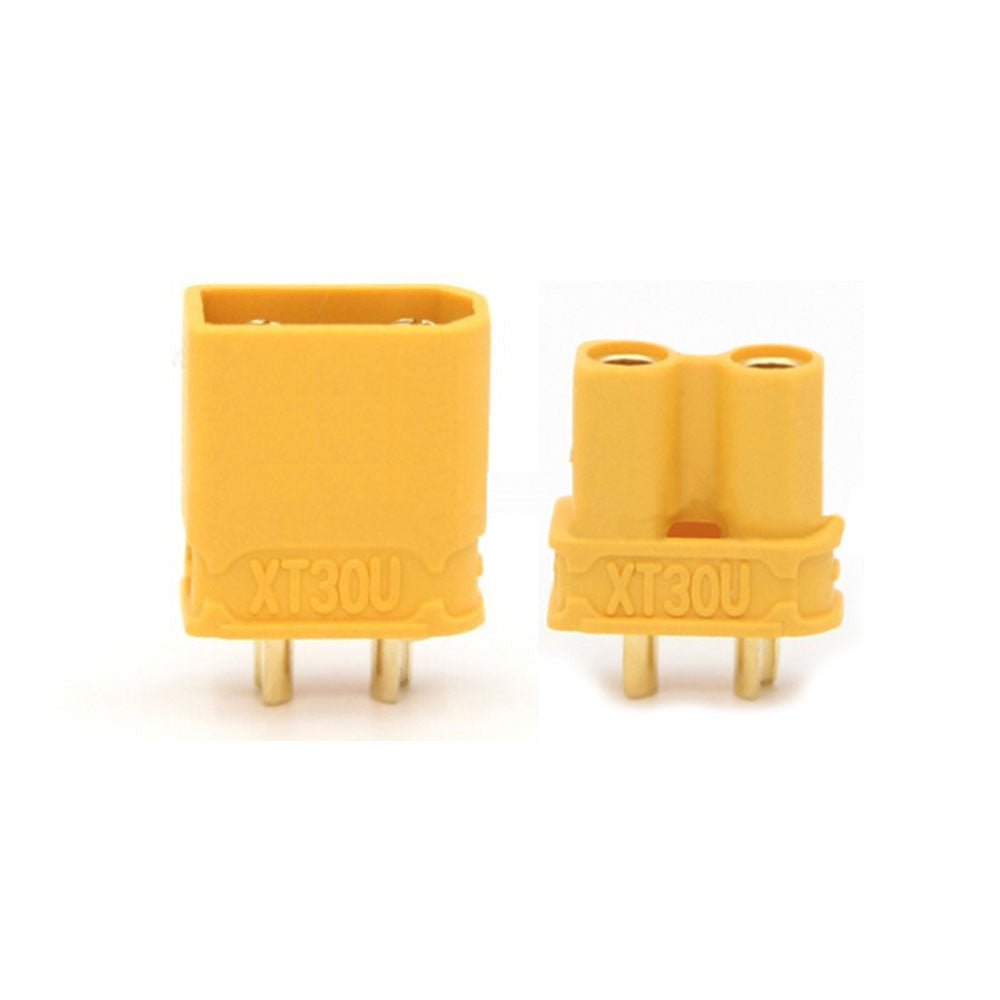

AMASS XT30U 2mm Gold Plated Female Male Connectors

$1.49


Description

Specifications:
Item No:XT30U
Color:Yellow
Momentary Current: 30A
Rated Current:15A
Constriction Resistance: 0.70mΩ
Rated voltage: DC 500V
FR LEVEL: UL94 V0
Recommend USE: Battery/charger/controller
Metal Material: Gold plated brass
Recommend Cable Spec.: 18AWG
Insulation Material: PA
TEMPERATURE: -20℃ to 120℃
USE TIMES: 1000 TIMES

Main Features:
1. Miniaturization
The small size occupies a smaller space, safe and stable transmission of continuous current'
2. Gold Plating
2U thickness 24K gold plating, to ensure stable current transmission;With the cross grooved design of the banana plug, it has greater contact area, therefore, it can withstand a constant 15A, peak current of 30A current.
3. Integration
Shorter wires, reducing the current transmission distance
Reduce pressure drop, reduce consumption
More Reliable
4. UL94V-0 flame resistant rating
The plastic shell is made of insulating material, which is not easy to burn in case of fire, and it will automatically extinguish from the fire source to ensure the stability of welding and the actual work of the product.

Package Included:
1 x Amass XT30U male plug
1 x Amass XT30U female plug
