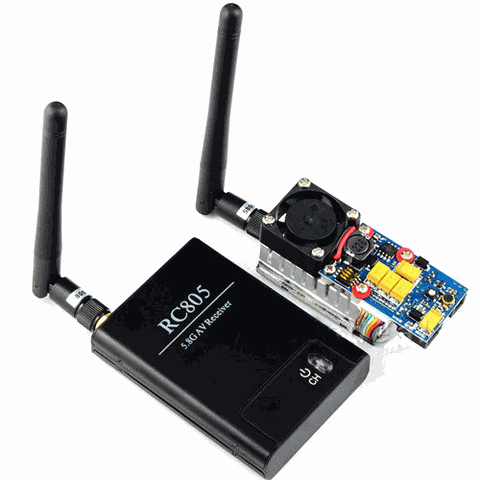

FPV 5.8G 2W 8Ch 2000mW Long Range Wireless A/V Transmitting/Receiving System Combo (TX+RX)

FPV-FEVER TR582000D is the latest 5.8G 2000mW wireless graphic transmission ssytem released in 2014, composed of a 5.8G transmitter and an AV 5.8G receiver. It includes all cables to connect to power sources and video sources. According to flyers` tests, this device can obtain more than 10km stable long range transmission distance through working together with the 14DB panel antenna. It is the ideal chooice for long range FPV.

Also this FPV device offers 8 different frequencies, which means 8 transmitters can work together without any co-channel interference.

Please Note:
For connecting the receiver, cathode is for outter side, while anode is for inner side. Wrong connection might cause damage.

Main Features of the receiver:
- 5.8GHz audio/video receive synchronously (compatible with PAL and NTSC)
- DC 9-12V working voltage (3s libo battery is also workable)
- Working Current: 1500mA
- 8 channels, selectively set the DIP switch
- High reliability, stability
- Built-in digital lock circuit, low harmonic radiation
- Provide 2-way separate video/audio output port
- Size: 100mm x 70mm x 18mm
- Weight: 60g (including antenna, but no wires)

Main Features of the transmitter:
- 5.8GHz audio/video receive synchronously (compatible with PAL and NTSC)
- Compact structure, small volume, high transmit power (2000mW)
- Adopts large scale integrated circuit, with very high reliability
- Working Voltage: 7.4V-13V
- 8 channels, selectively set the DIP switch
- Built-in frequency lock circuit, low harmonic radiation, high reliability and stability
- Working Current: 1500mA
- Size: 69mm x 31mm x 26mm
- Weight: 68.5g (including antenna, but no wires)

Working Frequency:
CH1:5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945

Package Includes:
- 1 x 2W transmitter with cable
- 1 x 5.8G AV receiver
- 2 x Antenna
- 1 x AV Cable
- 1 x Power Cable
- 2 x User Manual
